1.2°86H Stepping Motor Specifications(86H電機技術參數)
型號 Series Model
| 步距角 Step Angle (°) | 機身長 Motor Length (L mm) |
相電流 Phase Current (A) | 電阻 Phase Resistance (Ω) | 驅動電壓 Drive- Voltage (VAC) | 靜力矩 Holding Torque (N.m Min) |
接線方式 Wirings Diagram | 重量 Motor Weight (kg) |
ST86H360 | 1.2 | 63 |
4 | 1.1 | 220 | 2.4 | Wdg1 | 2.0 |
ST86H380 | 1.2 | 80 |
3 | 1.0 | 220 | 3.5 | Wdg1 | 2.2 |
ST86H3110 | 1.2 | 115 |
3.5 | 0.61 | 220 | 5.5 | Wdg1 | 3.5 |
ST86H3120 | 1.2 | 126 |
3.5 | 1.1 | 220 | 6.8 | Wdg2 | 4.2 |
*以上僅為常規產品，特殊產品可根據客戶要求訂制！

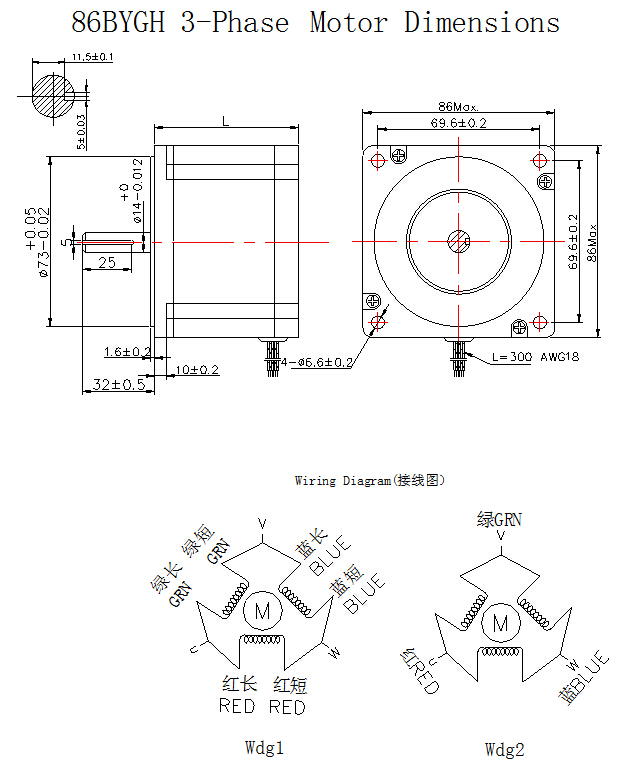

Dimensions(外形圖): unit=mm
