1.8° SIZE 20mm 2-PHASE HYBRID STEPPING MOTOR
推薦驅動器ST-MD42H
1.8°20H STEPPING Motor Specifications(20H電機技術參數)
型號 Series Model
| 步距角 Step Angle (°) | 機身長 Motor Length (L mm) | 電流 Rated Current (A) | 電阻 Phase Resistance (Ω) | 電感 Phase Inductance (mH) | 靜力矩 Holding Torque (g.cm Min) | 轉動慣量 Rotor Inertia (g.cm2) | 引線數 Lead Wire (No.) | 重量 Motor Weight (g) |
ST20H205 | 1.8° | 24 | 0.3 | 9.2 | 1.4 | 90 | 2.2 | 4 | 40 |
ST20H260 | 1.8 | 24 | 0.3 | 7.1 | 0.4 | 60 | 2.2 | 6 | 40 |
ST20H301 | 1.8 | 30 | 0.4 | 6.8 | 1.7 | 160 | 2.8 | 4 | 50 |
ST20H302 | 1.8 | 30 | 0.2 | 24 | 8 | 160 | 2.8 | 4 | 50 |
ST20H3401 | 1.8 | 34 | 0.6 | 7.4 | 1.6 | 200 | 3.2 | 4 | 60 |
ST20H3462 | 1.8 | 34 | 0.6 | 12 | 3 | 160 | 3.2 | 6 | 60 |
ST20H3802 | 1.8 | 38 | 0.4 | 12.9 | 3.2 | 300 | 4.5 | 4 | 80 |
*以上僅為常規產品，特殊產品可按客戶要求訂制。

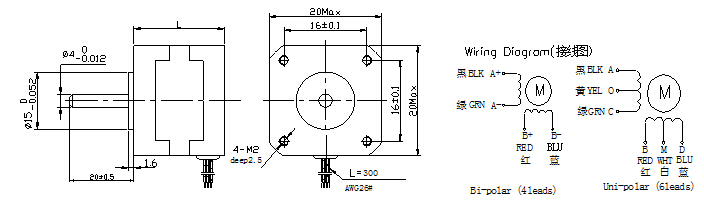

Dimensions(外形圖): unit=mm
