1.8°86BYG Stepping Motor Specifications(86BYG電機技術參數(shù))
型號 Series Model
| 步距角 Step Angle (°) | 機身長 Motor Length (mm) | 電流 Rated Current (A) | 電阻 Phase Resistance (Ω) | 電感 Phase Inductance (mH) | 靜力矩 Holding Torque (N.m Min) | 轉動慣量 Rotor Inertia (Kg.cm2) | 引線數(shù) Lead Wire (No.) | 重量 Motor Weight (Kg) |
ST86BYG602 | 1.8 | 63 | 2.8 | 1.21 | 10.2 | 1.8 | 0.64 | 4 | 1.6 |
ST86BYG604 | 1.8 | 63 | 4.0 | 0.8 | 6.3 | 1.8 | 0.64 | 4 | 1.6 |
ST86BYG605 | 1.8 | 63 | 2A | 1.3 | 9.5 | 1.8 | 0.64 | 4 | 1.6 |
ST86BYG905 | 1.8 | 92 | 5.0 | 0.45 | 5.6 | 3.5 | 1.3 | 4 | 2.6 |
ST86BYG1282 | 1.8 | 129 | 4.5 | 0.45 | 3.6 | 4.8 | 1.9 | 8 | 3.8 |
*以上僅為代表性產(chǎn)品，特殊產(chǎn)品可按客戶要求訂制！

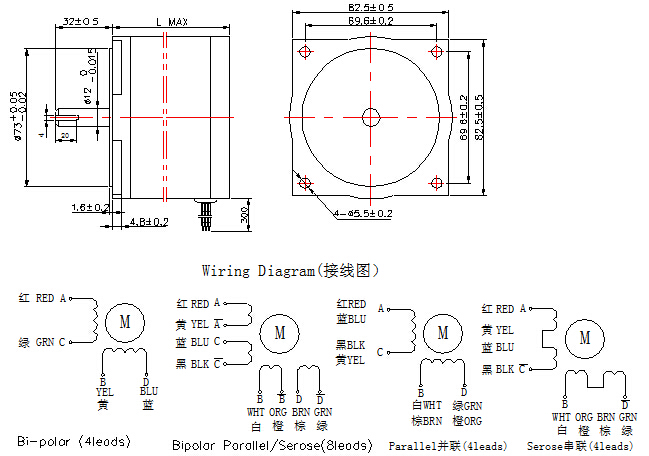

Dimensions(外形圖): unit=mm
