BLDC-4008 Brushless dc motor driver features
1, VDC; 24~36 current: 8A;
2. Rotating-speed display;
3. Hall s mode or no hall s model to choose;
4. Rate opening loop or Closed-loop to choose;
5. Adopt new PWM pulse technology.
1、Port intructions：
BLD-4008驅動器引腳端口說明 | |
+AT -AT | 輸入直流電源小于40V |
U,V,W | 輸出電機接線端口 |
+5V | 霍爾電源+5V |
GND | 霍爾電源負端 |
HALL A、B、C | 霍爾A,B,C 相 |
GND | 調速輸入端負極 |
CW | 電機正轉輸入端口 |
CCW | 電機反轉輸入端口 |
DA | 調速端口，一般0~10V內 |
BRAKE | 電機制動端口 |
CLK | 轉速反饋端口 |
+5V | 調速輸入端正極 |
2、the internal circuit set
Closed loop setting: switch combination 1,3,5,9, connecting withswitch accumulate and multiply by 1000, that is the maxClosed-loop RPM;
Hall model or not setting: connecting with switch W to run Hallbrushless motor, otherwise run no hall brushless motor.

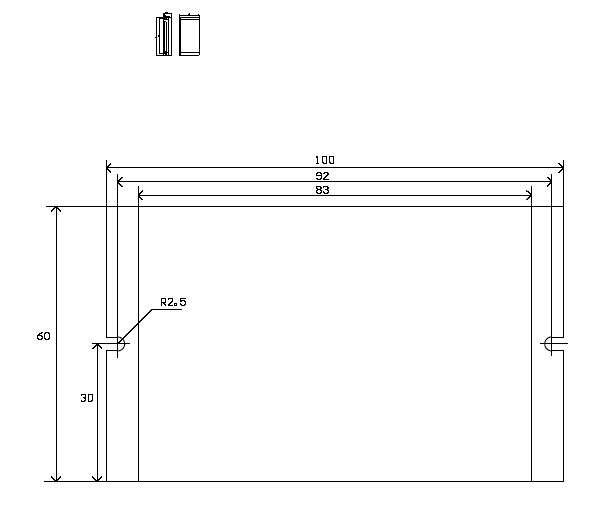

安裝外形圖：
